1.4) Branch thermosyphons
Branch thermosyphons are a set of thermosyphons sharing the same evaporator. The geometry possibilities are many, though they all obey the basic principle of thermosyphons: the evaporator must be located in the lower section of the assembly, in order to use gravity to bring the working fluid back to the evaporator. The main application for this type of thermosyphon is in baking ovens.

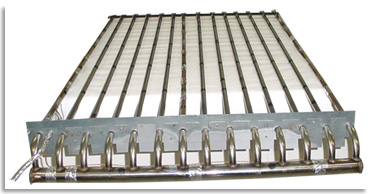

Figure 1 - Branch thermosyphon

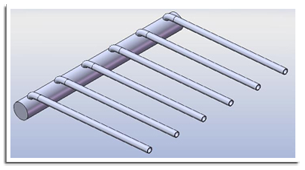

Figure 2 - Branch thermosyphon
